Product Description

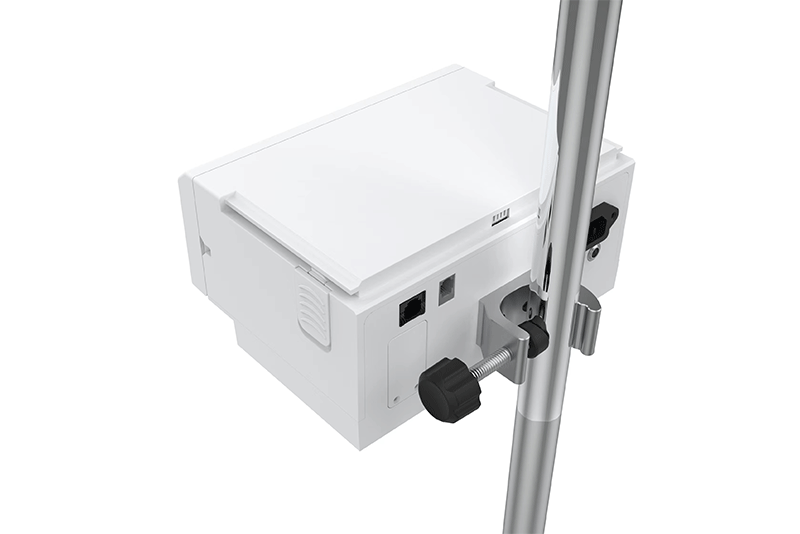

An infusion pump is an instrument that can accurately control the number of infusion drops or the infusion flow rate, ensuring that the drug can enter the patient's body at a uniform speed, accurate dosage and safely. At the same time, the infusion pump can also improve the efficiency and flexibility of clinical drug administration operations and reduce the workload of nursing. Infusion pumps are usually mechanical or electronic control devices that control the infusion rate by acting on the infusion catheter.
It is often used in situations where the infusion volume and drug dosage need to be strictly controlled, such as when using pressor drugs, antiarrhythmic drugs, infants or intravenous anesthesia.
1. 4.3 inch color touch screen for easy operation and clear vision
2. Compact and lightweight design for easy carrying and mounting
3. User friendly interface with audible and visual alarm system
4. Built-in lithium battery, around 5 hours working time after fully charged
5. Multiple infusion modes to satisfy different infusion requirements
6. Advanced pressure detection technology
Product Name | Infusion pump |
Origin | China |
Certifications | CE/ISO/FDA |
Applicable infusion set | Various brand of infusion set, singleuse 20drops/ml Infusion set diameter:3.4~4.5mm |
Infusion modes | ml/h(default): Flow rate & volume mode.Flow rate & time mode, Flow rate moded/min: Drip& volume mode, Drip& timemode, Drip mode |
Flow rate range | 0.1-1500m//h 0.1-100ml/h,increment 0.1ml/h101-1500mlml/h,increment 1m//h |
Infusion dripping speed | 20d/ml, infusion set :1-500d/min |
Infusion accuracy | ±5% |
Volume to be infused(VTBI) | 0.1---9999ml 0.1-999.9ml/h,increment 0.1ml/h1000-9999ml,increment 1ml/h |
Purge rate | 1000ml/h |
KVO rate | 2.5ml/h |
Occlusion Pressure | 19kPa, 38kPa, 57kPa, 76kPa, 95kPa,114kPa,133kPa(default :95kPa) |
Air-bubble detection | Smallest size of Air Bubble: 50ul |
Power supply | AC power supply: 100---240V,50/60Hz； External DC power supply: 7.4 V |
Battery | Internal rechargeable Lithium battery, 1800mAh |
Battery working time | Around 5 hours (for infusion rate at100ml/h with a new battery) |
Fuse | T 1A |
Operation environment | Temperature +10~+30°C Relative Humidity s70% Atmospheric Pressure 86 KPa~106KPa |
Storage environment | Temperature -10~+55°C Humidity ≤80% |
Screen | 4.3" LCD touch screen |
Dimension | 200mmx155.5mmx97mm |
