Types of Oxygen Masks

Views: 0     Author: Site Editor     Publish Time: 2023-02-22      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The oxygen mask is a medical device that provides a method for transferring respiratory oxygen gas from a storage tank to the lungs.

The oxygen mask features smooth edges and an adjustable nose clip designed to improve patient comfort while reducing irritation.

Oxygen masks come in all shapes and sizes, and there are several types for different situations and patient needs.

In this post, we discuss the most common types of oxygen masks.

Table of Contents

Simple Oxygen Masks

Non-Rebreather Masks

Venturi Masks

Nebulizer Masks

Tracheostomy Mask

CPAP Masks

CPR Mask


Here are the most common types of oxygen masks:

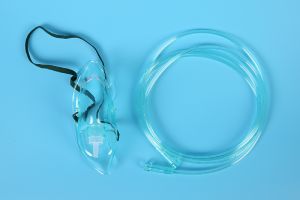

Simple Oxygen MasksPVC Oxygen Mask

The simple oxygen mask is a basic disposable mask that delivers oxygen with an oxygen concentration of 40-60% with a flow rate of 5-8 liters/minute. Typically used to treat mild to moderate hypoxia.

The Oxygen Mask is composed of a mask, an oxygen supply tube with a standard connector, a nose clip, and an elastic belt.

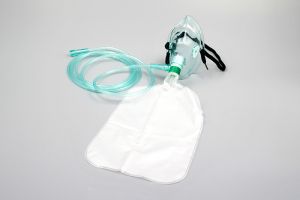

Non-Rebreather MasksOxygen Mask with Reservoir Bag

Non-rebreather Oxygen masks are used to deliver oxygen therapy to people who require high-concentration oxygen but aren’t in need of breathing assistance. The masks feature a safety valve and a reservoir bag to ensure sufficient oxygen supply.

Like other oxygen masks, non-rebreather masks fit over the nose and mouth and are held in place by an elastic band.

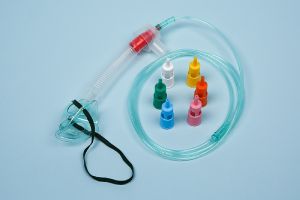

Venturi MasksAdjustable Venturi Mask

Venturi masks are used to deliver a known oxygen concentration to patients on controlled oxygen therapy. Adjustable venturi mask with 6 color-identified oxygen-concentration regulators to ensure an effective and accurate oxygen-transferring based on the varied demands of the patients.

Venturi masks are considered high-flow oxygen therapy devices.  This is because venturi masks are able to provide total inspiratory flow at a specified FIO2 to patients therapy.

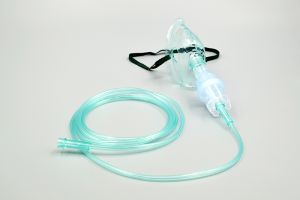

Nebulizer MasksOxygen Mask with Nebulizer

The nebulizer mask is a drug-delivery device used to deliver drugs to the lung in the form of aerosol inhalation. The nebulizer masks are typically made of vinyl and are affordable price. It was composed of a soft clear latex-free oxygen mask, a high-volume nebulizer kit, an oxygen supply tube with the standard connector, a nose clip, and an elastic belt.

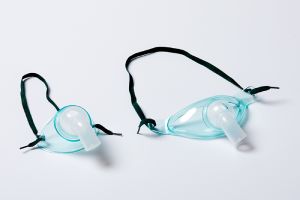

Tracheostomy MaskTracheostomy mask

Tracheostomy Masks are used to deliver oxygen from the opening in the neck into the trachea. They are specially designed to fit over the stoma and secure to the neck.

Tracheostomy masks are contoured and feature a swivel connector that can rotate through 360o for maximum patient comfort. An adjustable elastic strap that fits around the patient’s neck holds it in place.

The tracheostomy mask is made from PVC in medical grade and consists of Mask, swivel tubing connector, and neckband.



CPAP Masks

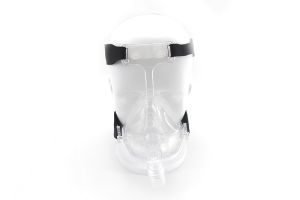

CPAP MASK

Continuous Positive Airway Pressure (CPAP) mask provides continuous positive airway pressure to treat obstructive sleep apnea(OSA), hypopnea, airflow restrictions, and snoring.

Full-face CPAP masks are designed to cover the mouth and nose of the user and are used primarily for “mouth-breathers” - patients who breathe through their nose and mouth during the night.

Full Face Mask is made of medical-grade liquid silicone rubber. It has excellent comfort and skin-friendly durability and will not cause allergic reactions.



CPR Mask

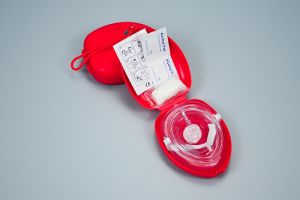

CPR Mask

CPR Mask (also known pocket mask) is a device used to safely deliver rescue breaths during - a cardiac arrest or respiratory arrest.

The emergency care mask acts as a barrier separating rescuers and patients. The collapsible face shield is easy to use and convenient to carry.

The clear face shield allows the rescuer to position it properly and monitor the victim. It features a one-way valve with a filter, an elastic latex-free head strap attached to the mask, bladder inflation that ensures a proper seal, and an oxygen inlet.



We have a broad selection of medical oxygen masks, including Nebulizing masks, Medical oxygen masks, Non-rebreathing masks, Tracheostomy masks, Venturi masks, CPR masks, etc.

If you’d like to learn more about your medical oxygen mask product options, please don’t hesitate to contact us.

We are ready to service you with our full range of supply chains.
