Bowie&Dick Test Pack: Essential Tools for Sterilizer Checks

The Bowie&Dick Test Pack is a critical tool for validating pre-vacuum steam sterilizer performance, supporting healthcare infection control

1. Definition

The Bowie&Dick Test Pack (or kit) is a standardized diagnostic tool for pre-vacuum steam sterilizers, evaluating air removal efficiency and steam penetration.

Unlike conventional chemical indicators, it detects non-condensable air pockets (impeding steam contact and sterilization efficacy). As a daily pre-clinical test, it rapidly assesses cycle performance, ensuring compliance with international standards and safeguarding patient safety.

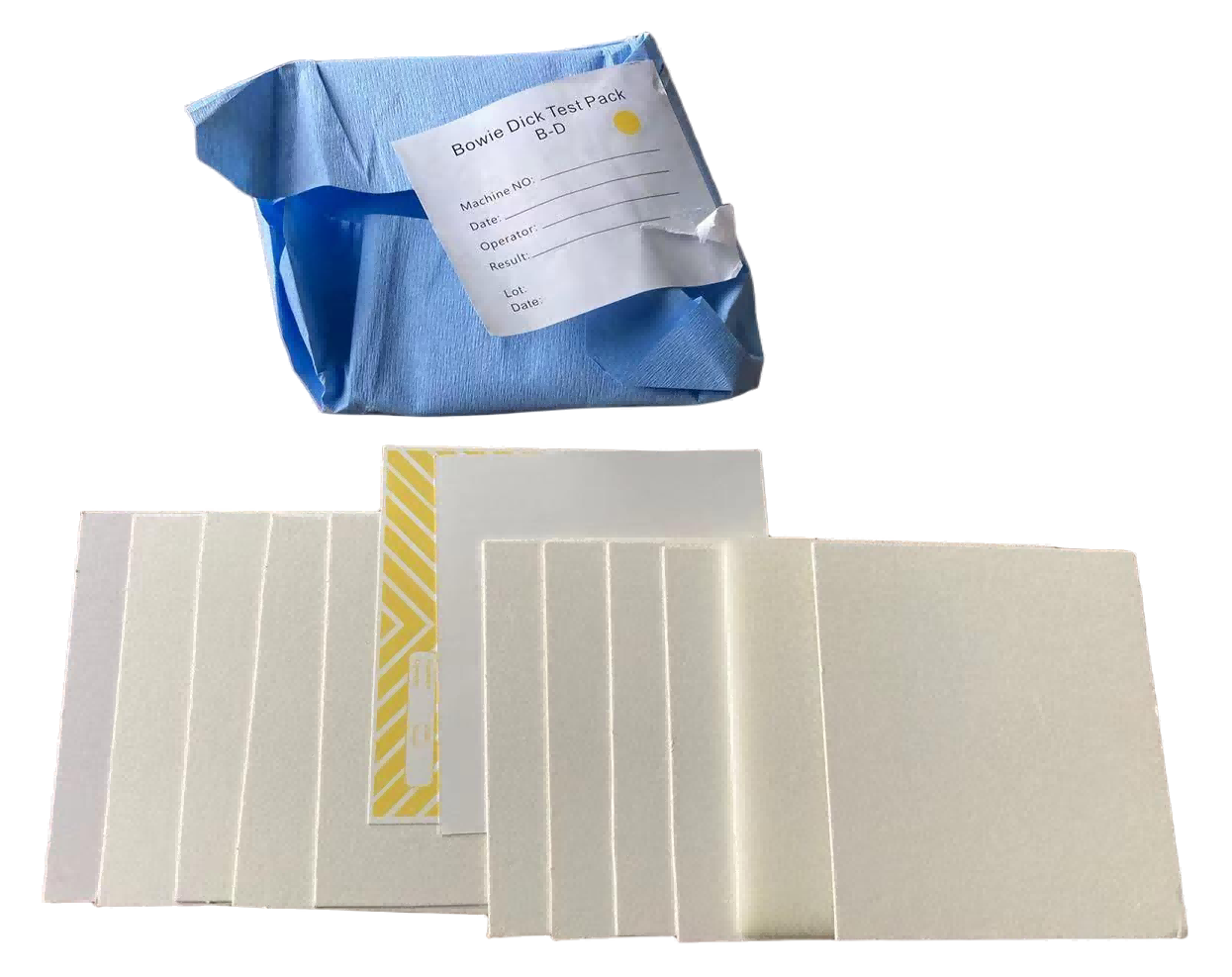

2. Materials

Bowie&Dick Test Packs mimic medical instrument packs’ density and steam resistance for accurate sterilization simulation. Key components & materials:

• Test Sheet: Absorbent paper indicator with heat/steam-sensitive dyes (e.g., lead carbonate), enabling irreversible color change under saturated steam.

• Wrapping Material: Medical-grade non-woven fabric, steam-permeable to simulate instrument pack barrier properties.

• Core Substrate: 10-12 layers of 40cm×40cm cellulose surgical sheets, forming a dense load to test steam penetration & air removal.

3. Characteristics

• Lead-free, heavy metal-free, latex-free & fully biodegradable;

• Test sheets and inks: Lead/heavy metal-free, non-toxic, pollutant-free, latex-free (no dry natural rubber);

• Distinct white-to-black color change confirms effective steam penetration;

• Post-processing load information markable directly on test sheet for record-keeping;

• Permanent post-processing color change; no degradation over time;

• Advanced formulation, stable performance, easy operation.

4. Advantages

• Early Defect Detection：Pinpoints sterilizer flaws pre-use, cutting infection risk;

• Cost-Effective QC：Low-cost daily testing vs complex monitoring methods;

• Simplified Operation：No special training/equipment, one-step execution;

• Regulatory Compliance：Documented performance for global accreditation standards;

• Reliable Results：Clinical pack simulation for accurate sterilizer performance reflection.

5. Primary Uses

• Daily Routine Testing: Mandated pre-clinical daily testing to validate sterilizer functionality post-idle.

• Post-Maintenance Verification: Confirms optimal operation after maintenance, repairs or adjustments (e.g., vacuum pump servicing).

• New Equipment Qualification: Validates air removal/steam penetration during new sterilizer installation & commissioning.

• Troubleshooting: Diagnoses sterilization failures by indicating air removal, steam quality or cycle parameter issues.

6. Application Scenarios

• Hospital Central Sterile Supply Departments (CSSD): Core site for daily sterilization of reusable instruments.

• Operating Rooms (ORs): On-site sterilization of emergency/specialized instruments for immediate reuse.

• Dental Clinics: Prevents cross-contamination via sterilizing dental handpieces and reusable tools.

• Ambulatory Surgical Centers (ASCs): Supports sterile processing for same-day surgical procedures.

• Veterinary Clinics: Sterilizes instruments to prevent animal pathogen spread.

• Pharmaceutical/Biotech Facilities: Validates sterilizers per GMP for equipment/packaging.

7. Operating Instructions

For daily pre-clinical testing of pre-vacuum steam sterilizers. Follow these steps for valid results:

• Prep: Ensure the sterilizer chamber is clean and dry. Use a new, unopened pack; check the indicator sheet is intact (no pre-color change).

• Placement: Place the unwrapped pack at the geometric center of the sterilizer’s bottom shelf. No other items allowed in the chamber.

• Run Cycle: Start a standard pre-vacuum cycle (follow sterilizer guidelines; no parameter adjustments).

• Retrieve: After the cycle and pressure returns to atmospheric, retrieve the pack with sterile tools to avoid contamination.

• Inspect Results:

Pass: Uniform white-to-black color change across the entire indicator sheet (sterilizer is usable).

Fail: Partial/uneven discoloration or white areas (stop clinical use and troubleshoot).

• Document: Mark sterilizer number, test date, operator and cycle details on the sheet. File records per regulatory requirements.

8. Key Operational Notes

• This test pack is for pre-vacuum steam sterilizers only; do not use on gravity-displacement steam sterilizers.

• Use a new test pack for each daily test; do not reuse or repackage the pack, as this will invalidate results.

9. Summary

An irreplaceable tool for pre-vacuum steam sterilization integrity, ensuring regulatory compliance, infection control and safeguarding patients/healthcare workers.
